Machine Introduction:
The full servo unit type high speed window patching machine is driven by 13 servo motors independently. The unit type design allows you to replace and add mechanical modules at will according to different product requirements of customers. It has the multi-purpose function of one machine. The module double-knife can not only paste the flat window on the high speed , but also paste the creasing window with high precision. At the same time,it has film line pressing and V-angle stamping, film pattern marking, paper tissue box film opening, film punching, Thin film embossing logo function.
Major Feature:| 1.It can position the window film of printing automatically. To get the high exactly position of printed film. |  |
| 2. The film can be embossed(need to customize pattern mold, the model need to added the cost if choose this function) | |
| 3.The film can be punched with round holes or special-shaped holes(Need to customize the mold, the mould need to added the cost if choose this function) | |
|
| G-1200S | |
| Parameter | Flat Paste Type | Creasing Type |
| Max.Paper Size | W1150xL850mm | |
| Min.Paper Size | 120X120mm | |
| Paper Weight | Kraft Paper:150-1500g/㎡ White Cardboard:230-1500g/㎡ Corrugated Paper:≤5mm | |
| Max.Film Size | W550xL550mm | |
| Min.Film Size | W30xL70mm | |
| Max.Film Unwinding Diameter | 450mm
| |
| Film Thickness | CPE/PE:0.05-0.2mmPVC:0.02-0.2mm APET/PET:0.02-0.2mm
| |
| Film Precision | ±1mm | |
| Max Speed | Paper L≤400mm:20000pcs/h Paper L＞400mm:10000pcs/h | |
| Qty of Servo Motor | 11 Sets | 13 Sets
|
| Qty of V-shaped Punching Molds | None | 4 Sets |
| Power | 380/415V 50/60Hz 16KW | 380/415V 50/60Hz 18KW |
| Machine size | L570xW190xH160cm | |
| Weight | 3100kg | 3400kg |
| Wooden case packing (export) | L430xW195xH185cm G.W.:3285kg N.W.:3100kg | L495xW195xH185cm G. W.:3600kg N.W.:3400kg |
More details introduction:

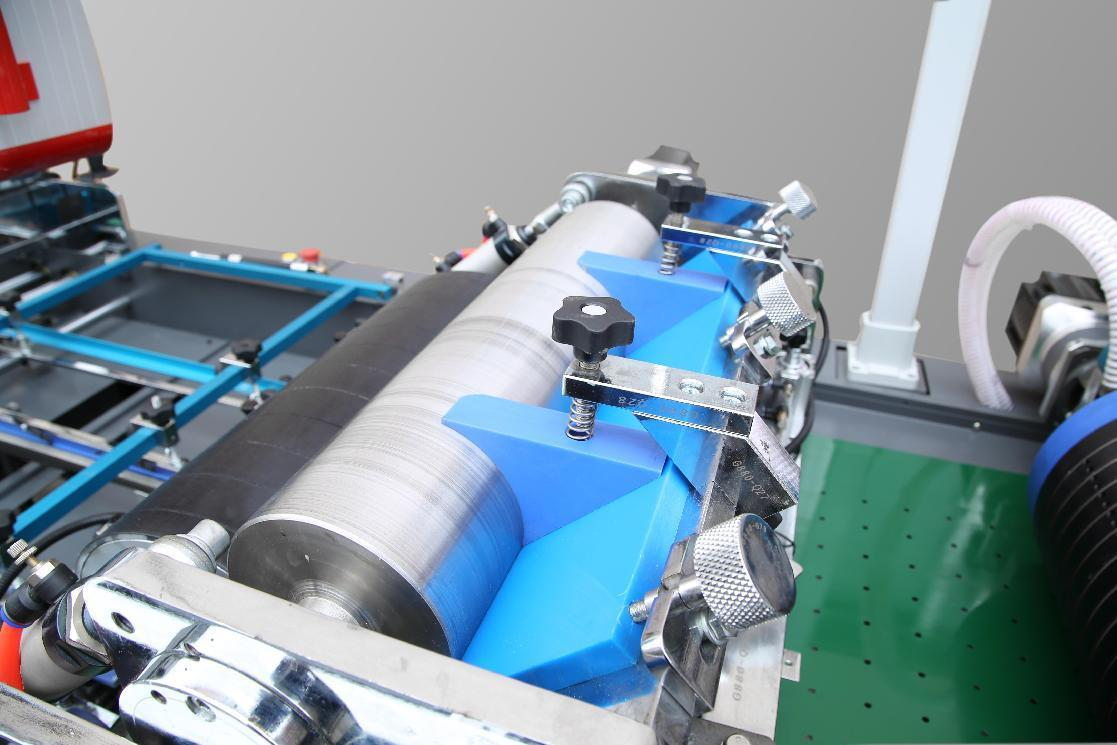

| Paper Feeding | Correction of Paper Feeding Track | Gluing |
| | |
| Machine Screen for machine back running | Servo motor | Nylon gluing plate |
| | |
| Independently Final product Collecting holder | Movable Touch Controlling Screen | Adjustment for film unwinding tension |
| | |
Cake box / General Box
Double creasing / Three creasing (Optional)
Horizontal creasing / Horizontal and Vertical creasing(Optional) / Tissue box
