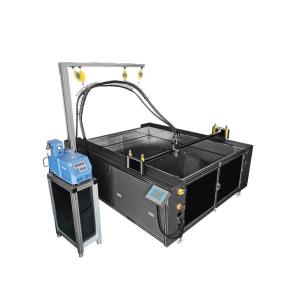

Servo Controlled Automatic CNC Gluer 2500*1600mm CNC Gluing Machine Safety

Ask Latest Price
Video Channel
Brand Name :FINTEECH
Model Number :CNC Glue
Certification :CE
Place of Origin :CHINA
MOQ :1set
Packaging Details :wooden case
Delivery Time :20-30 days
Payment Terms :TT/LC
Supply Ability :10 sets per day
Warranty :1 Year
Glue Width :50-800mm
Gluing Method :Roller Gluing
Type :Automatic
Glue Type :Water-based Glue
Application :Carton Box Making
Weight :2000kg
Model :Gluer
Max Speed :300m/min
Dimensions :6000x1200x1500mm
Power Supply :380V/50Hz
Glue Thickness :0.1-0.3mm
Control System :PLC Control
more
Contact Now

Add to Cart

Find Similar Videos
View Product Description

Apply hot melt and cold (pva) glues with speed and precision to your POP display and packaging materials. This machine is a high quality (made in China) XY glue plotter table with application speeds up to 1.3m/s.

Desired glue patterns are programmed into the machine through a combination of a touch screen and sports-controlled system and using a DXF/PLT/AI transfer system, our Glue Plotter is a simple machine to set up and operate meaning unskilled personnel that are used to using hand guns can be used.

  • Servo-controlled automatic XY gluing plotter
  • Automatic raising bed
  • Application of hot melt adhesives and cold PVA glue
  • many different types of glue head can be fitted. Both hot melt and cold (pva) can be applied in spray(optional)/bead/microdot application modes.
  • standard located the original point is laser light, and projector system as a optional which is easy to move the file to the correct place.
Details:
  1. working size:2500*1600mm
  2. With 2 workstations
  3. Four doors can be opened, easier to stack the materials.
  4. Max Stack height: 840mm
  5. Safety devices
  6. Glue head (standard:hot melt and cold)
Optional equipment:
  1. Paper Press device (Optional)
  2. Projector (Optional)
